Binary trees are among the most used and amazing data structure in computer science. With each node having a maximum of two children which is commonly referred to as the left and right child of binary tree that form the basis of many useful step by step process and systems. Whether you are a fresher trying to understand data structure or an experienced coder who wants to improve their code performance to understand the application of binary tree is crucial.
What is a Binary Tree?

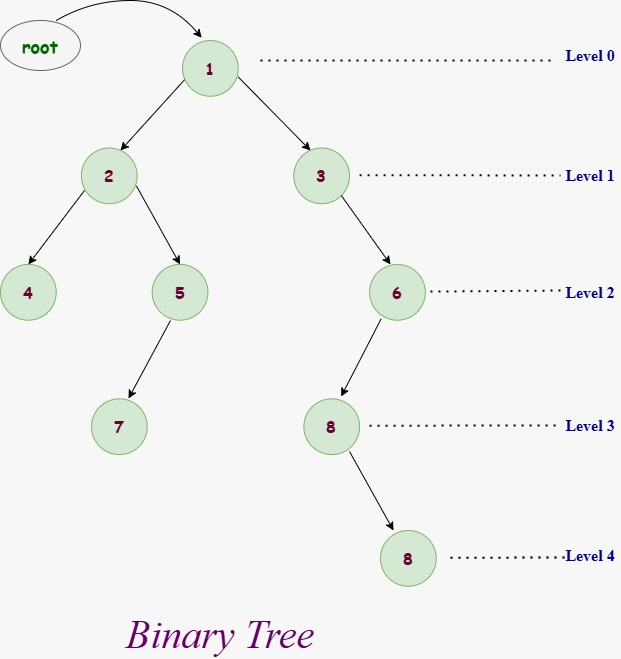

A binary tree is a tree like data structure in which each node has at most two children. The top node is called the root and each node can have 0, 1 and 2 child nodes.
There are several types of binary trees:
- Full Binary Tree: Every node has either 0 or 2 children.
- Complete Binary Tree: All levels are filled except possibly the last, which is filled from left to right.
- Perfect Binary Tree: All internal nodes have two children, and all leaf nodes are at the same level.
- Balanced Binary Tree: The height of the left and right subtree of any node differ by no more than one.

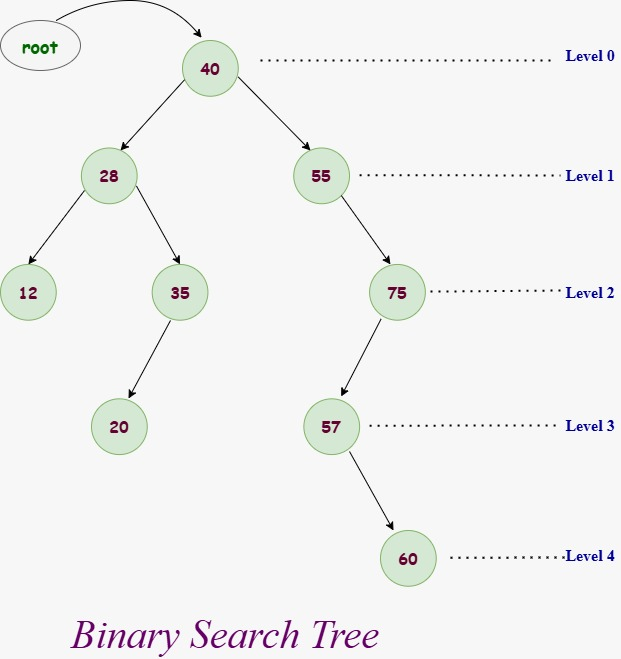

- Binary Search Tree (BST): A binary tree where the left child contains only nodes with keys less than the parent node, and the right child contains only nodes with keys greater than the parent node.
Top 10 Application of Binary Tree Data Structure
Binary Search Trees for Searching
One of the most common application of binary trees is in the form of Binary Search Trees. These trees allow for better searching, insertion, and delete operation in O(log n) time.
- Maintaining sorted data.
- Searching large datasets like databases or folders.
Expression Trees in Compilers
Binary trees are used to represent arithmetic expressions in programming languages and compilers. These trees are known as expression trees which have operands as leaf nodes and operators as internal nodes.
- Parsing and evaluating mathematical expressions.
- Building syntax trees in compilers.
Heap Trees for Priority Queues
Binary trees are also used to implement heaps especially binary heaps which are complete binary trees used to build priority queues.
- Task scheduling in operating systems.
- Dijkstra’s algorithm for shortest path finding.
Huffman Encoding Trees for Data Compression
Huffman coding is a well known algorithm for data compression which makes extensive use of binary trees to encode characters based on their frequencies.
- File compression (ZIP, JPEG, JPG, PNG).
- Data transfer and communication protocols.
Binary Trees in Databases and File Systems
Binary trees is also a binary search trees and AVL trees that are used in databases for indexing and searching records efficiently.
- Efficient storage and getting back in database indexing.
- File system and folder structure representation.
Routing Algorithms in Networks
Binary trees are also useful in network routing algorithms for decision making and efficient traversal of paths.
- IP routing algorithms.
- Tree based multicast protocols.
AI and Decision-Making Systems
In artificial intelligence binary trees serve as the backbone of decision trees, which are used in machine learning for classification and regression tasks.
- Game AI for decision making.
- Classification models in data science.
Autocomplete and Spell Checker
Binary Search Trees can be modify to work like tries for implementing autocomplete suggestions and spell checking by storing dictionary words.
- Text editors and search engines.
- Real-time query suggestions.
Why Are Binary Trees So Commonly Used?
| Reason | Explanation |
|---|---|
| Efficiency | Binary trees, especially BSTs, allow fast insertion, deletion, and search (O(log n)). |
| Scalability | They can handle large datasets by maintaining balanced structures. |
| Flexibility | Different variations like AVL, Red-Black Trees, and Heaps serve multiple use cases. |
| Hierarchy Representation | Their hierarchical nature mirrors many real-world systems (e.g., file directories). |
| Adaptability | Can be easily transformed to fit specific applications, from parsing to compression. |
FAQs (Application of Binary Tree)
What is the real life application of binary tree?
Binary trees are used in applications like database indexing, expression parsing in compilers, and Huffman encoding in data compression.
What is the difference between a binary tree and a binary search tree?
A binary tree is a structure where each node has up to two children while a binary search tree (BST) maintains a sorted order of elements for efficient search.
Can binary trees used in sorting?
Yes binary trees are used in sorting techniques and their implementations.
